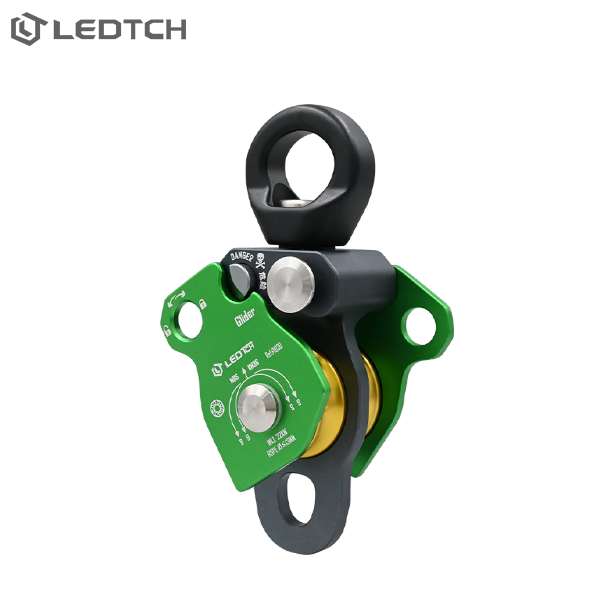

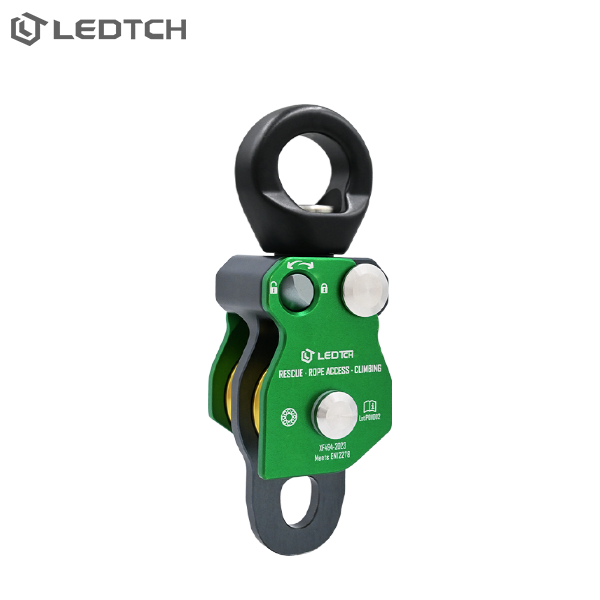

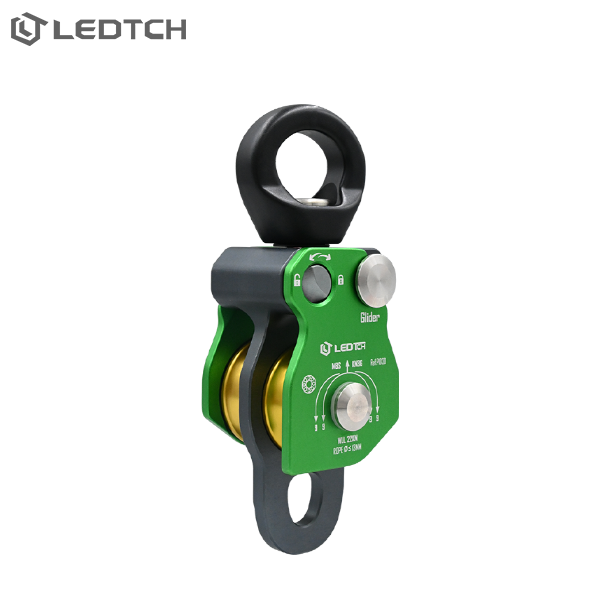

Description
• 360-degree swivel head provides ultimate operational flexibility and alignment.
• Quick-open side plate enables direct rope loading/unloading, streamlining setup.
• Dual Safety Lock: Requires a two-step button press sequence to open the side plate, preventing accidental release.
• High-Strength Aluminum Alloy construction ensures durability and light weight.
• Sealed Ball Bearings deliver over 90% efficiency and an extended service life.

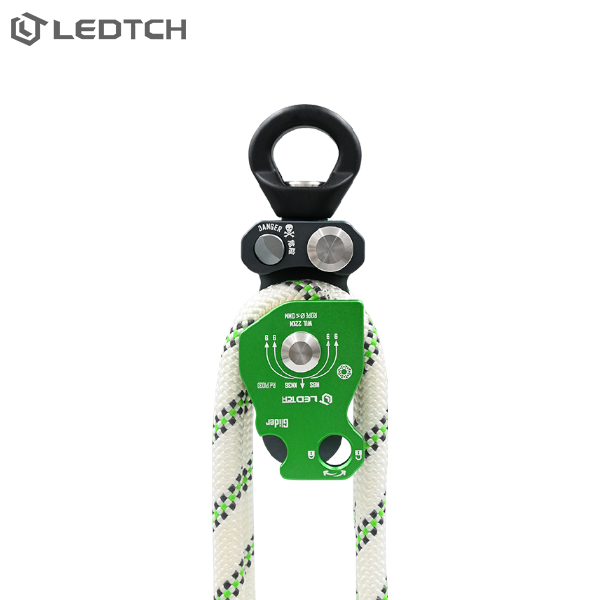

• The side plate profile is designed to accommodate a Prusik hitch for efficient rescue haul system construction.
Specifications:
• Rope Diameter: Up to 13 mm
• Sheave Diameter: 37 mm
• Strength: MBS (Minimum Breaking Strength): 36 kN; WLL (Working Load Limit): 22 kN
• Materials: Side Plates & Sheave - Aluminum Alloy; Bearings & Axle - Steel
• Certification: XF494-2023
• Dimensions: 145 x 54 x 47 mm
• Weight: 353 (±1) g
